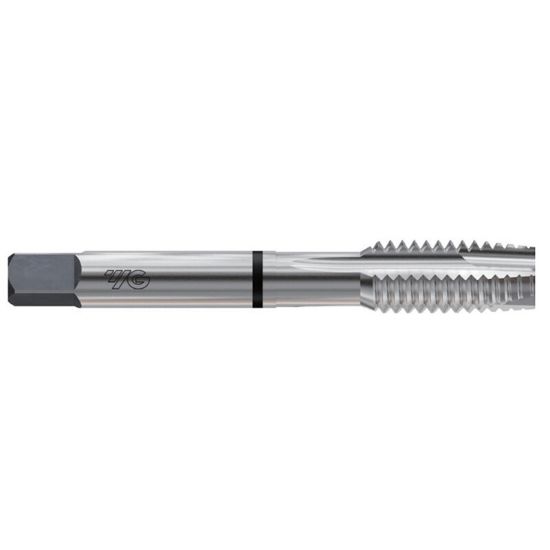

YG-1 TB545 7/16-20.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TB545
Delivery date: 3-5 days
$20.41

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Package Size 1
Performance Rating High Performance
Shipping State Illinois
Dimensional Specifications
Thread Pitch 20.00TPI
Length Type Standard
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tap Chamfer 4.0P-5.0P
Thread Size 7/16"
Overall Len 3.1560 80.16MM
Tap Type Plug
Thread Type NF/UNF/UNEF
Flutes/Inserts 3
Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Style Cut Spiral Point
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSS-EX
Industry-Specific Applications
Job Shop Yes
