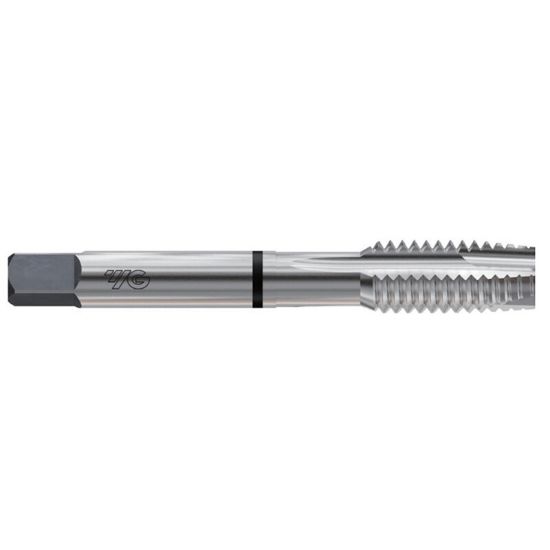

YG-1 TB525 7/16-14.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TB525
Delivery date: 3-5 days
$20.41

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Chamfer 4.0P-5.0P
Length Type Standard
Thread Pitch 14.00TPI
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Overall Len 3.1560 80.16MM
Tap Type Plug
Thread Type NC/UNC
Tool Material Steel
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Tap Square 0.2420
Flutes/Inserts 3
Thread Size 7/16"
Tap Style Cut Spiral Point
Cutting & Machining Properties
Cutting Edge Mat HSS-EX
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
