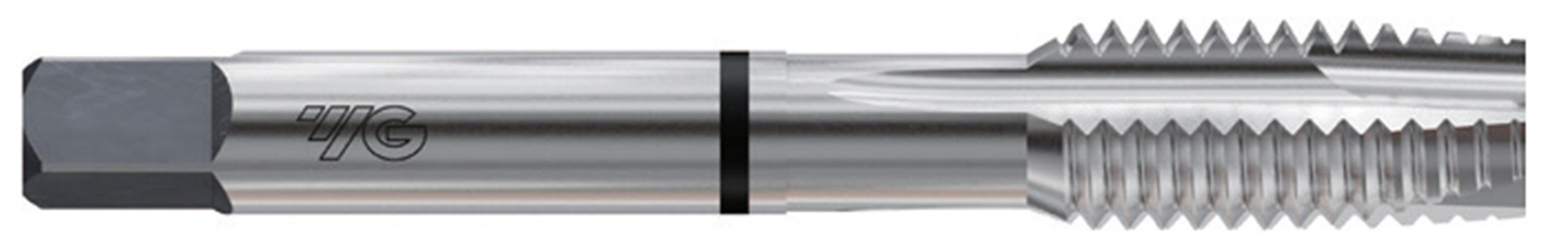

Picture of YG-1 TB525 7/16-14.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Uncoated

YG-1 TB525 7/16-14.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Uncoated

Part Number: YG-TB525
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$27.16
SKU: 1166782

Description

YG-1 TB525 7/16"x14.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Uncoated H5/GH5 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 3.1560 80.16MM
Shank/Pilot Dia 0.3230 8.20MM - P
Flutes/Inserts 3
Thread Pitch 14.00TPI
Thread Size 7/16"
Tap Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Tap Square 0.2420
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-EX
Standards & Identification
Dimension Standard ANSI/ANSI
