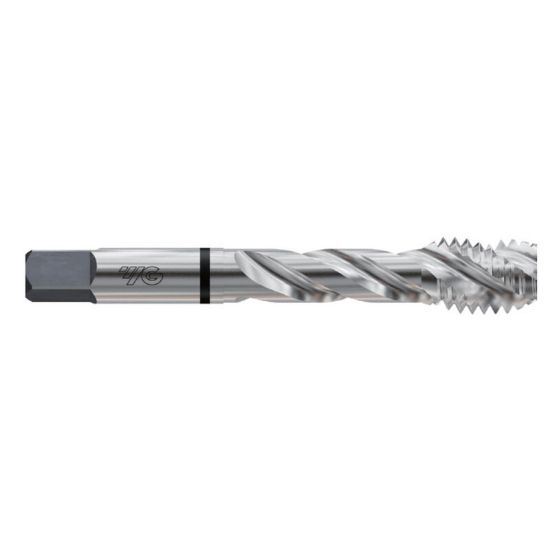

YG-1 T9284 M5-0.80MM Cut Spiral Flute Bottoming 1.0P-2.0P HSS-EX Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T9284
Delivery date: 3-5 days
$10.60

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Overall Len 2.3750 60.33MM
Flutes/Inserts 3
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Thread Pitch 0.80MM
Thread Type Metric
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tap Square 0.1520
Thread Limit D4
Length Type Standard
Tap Type Bottoming
Thread Size M5
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.1940 4.93MM
Tap Chamfer 1.0P-2.0P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSS-EX
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
