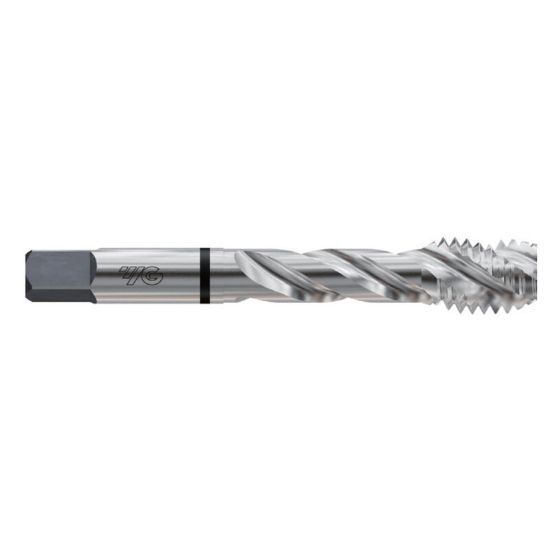

YG-1 T9224 M3.5-0.60MM Cut Spiral Flute Bottoming 1.0P-2.0P HSS-EX Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T9224
Delivery date: 3-5 days
$10.60

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.1410 3.58MM
Drill Range 0.1134 2.88MM - 0.1193 3.03MM
Tool Material Steel
Thread Size M3.5
Thread Type Metric
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Thread Pitch 0.60MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Thread Limit D4
Overall Len 2.0000 50.80MM
Tap Square 0.1100
Length Type Standard
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSS-EX
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
