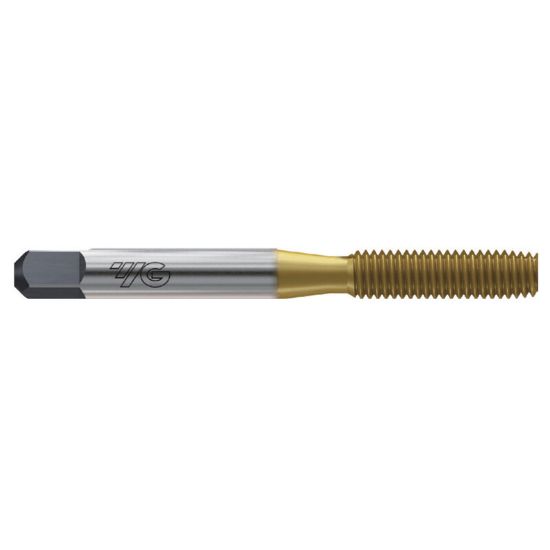

YG-1 T8R02485 3/8-16.00TPI Roll Form Bottoming 1.5P-2.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8R02485
Delivery date: 3-5 days
$13.25

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Bottom Tapping, Tapping
Made In USA No
Shipping State Illinois
Package Size 1
Coating TiN
Performance Rating General Performance
Dimensional Specifications
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Thread Type NC/UNC
Shank/Pilot Dia 0.3810 9.68MM
Overall Len 2.9370 74.60MM
Length Type Standard
Tap Type Bottoming
Thread Pitch 16.00TPI
Thread Limit H5/GH5
Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Tool Material Steel
Thread Size 3/8"
Tap Square 0.2860
Tap Style Roll Form
Tap Chamfer 1.5P-2.0P
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
