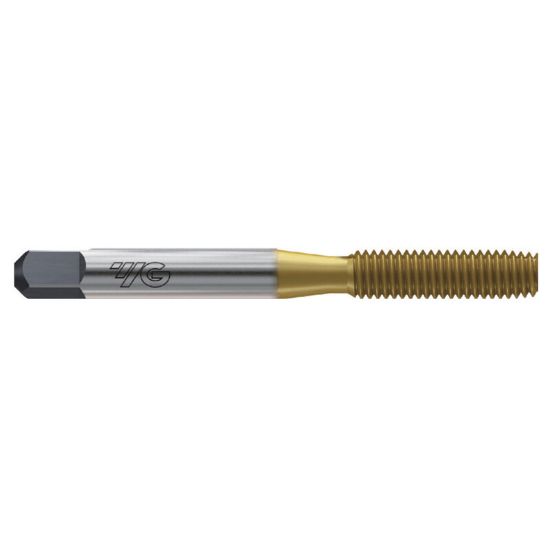

YG-1 T8R02445 5/16-18.00TPI Roll Form Bottoming 1.5P-2.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8R02445
Delivery date: 3-5 days
$12.03

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Roll Form Tapping, Bottom Tapping, Tapping
Coating TiN
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Thread Pitch 18.00TPI
Machine Side Connection Type Tap Collet
Tap Chamfer 1.5P-2.0P
Drill Range 0.2839 7.21MM - 0.2913 7.40MM
Tap Square 0.2380
Thread Type NC/UNC
Tap Style Roll Form
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Thread Size 5/16"
Overall Len 2.7200 69.09MM
Length Type Standard
Tap Type Bottoming
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
