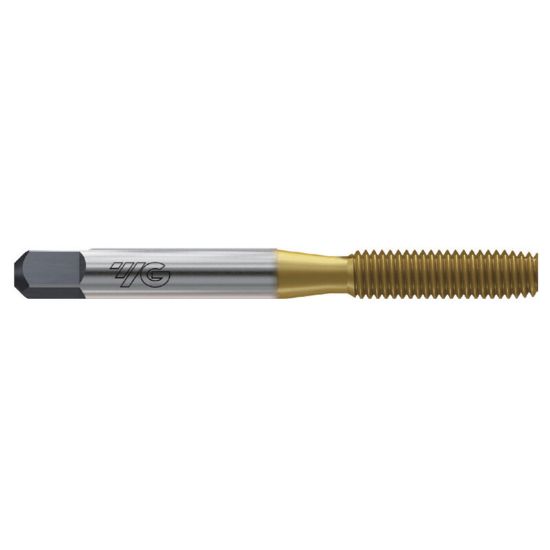

YG-1 T8R02424 1/4-28.00TPI Roll Form Bottoming 1.5P-2.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8R02424
Delivery date: 3-5 days
$10.81

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Blind Hole Tapping, Bottom Tapping, Tapping, Roll Form Tapping
Performance Rating General Performance
Coating TiN
Package Size 1
Dimensional Specifications
Overall Len 2.5000 63.50MM
Drill Range 0.2315 5.88MM - 0.2362 6.00MM
Tap Square 0.1910
Tap Chamfer 1.5P-2.0P
Length Type Standard
Tap Type Bottoming
Thread Size 1/4"
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Tool Material Steel
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Thread Limit H4/GH4
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Thread Pitch 28.00TPI
Tap Style Roll Form
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
