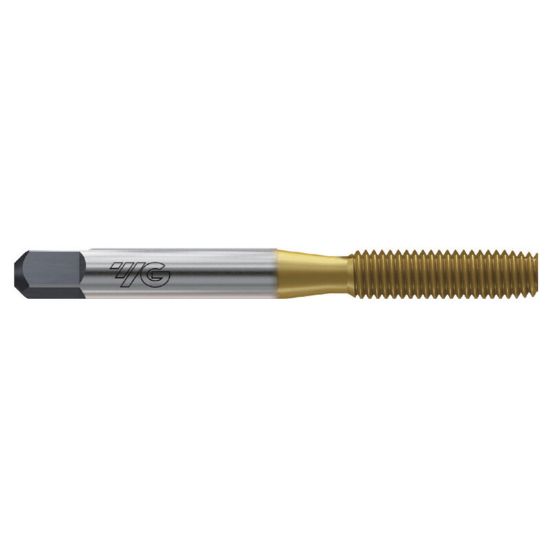

YG-1 T8R01445 5/16-18.00TPI Roll Form Plug 3.0P-4.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8R01445
Delivery date: 3-5 days
$12.03

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Coating TiN
Dimensional Specifications
Drill Range 0.2839 7.21MM - 0.2913 7.40MM
Tap Square 0.2380
Dimension Standard ANSI/ANSI
Thread Pitch 18.00TPI
Tap Chamfer 3.0P-4.0P
Thread Limit H5/GH5
Tap Type Plug
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Thread Type NC/UNC
Overall Len 2.7200 69.09MM
Length Type Standard
Tap Style Roll Form
Thread Size 5/16"
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
