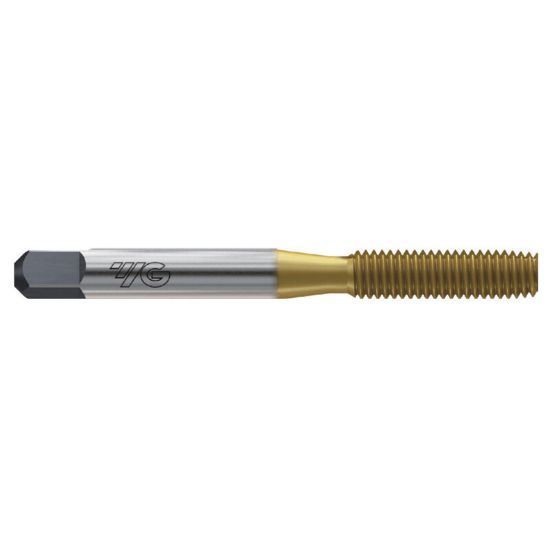

YG-1 T8R01424 1/4-28.00TPI Roll Form Plug 3.0P-4.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8R01424
Delivery date: 3-5 days
$10.81

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Made In USA No
Application Roll Form Tapping, Through Hole Tapping, Plug Tapping, Tapping
Performance Rating General Performance
Coating TiN
Dimensional Specifications
Tap Square 0.1910
Tap Style Roll Form
Tap Chamfer 3.0P-4.0P
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Tool Material Steel
Thread Limit H4/GH4
Shank/Pilot Dia 0.2550 6.48MM
Length Type Standard
Thread Pitch 28.00TPI
Thread Size 1/4"
Tap Type Plug
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Drill Range 0.2315 5.88MM - 0.2362 6.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
