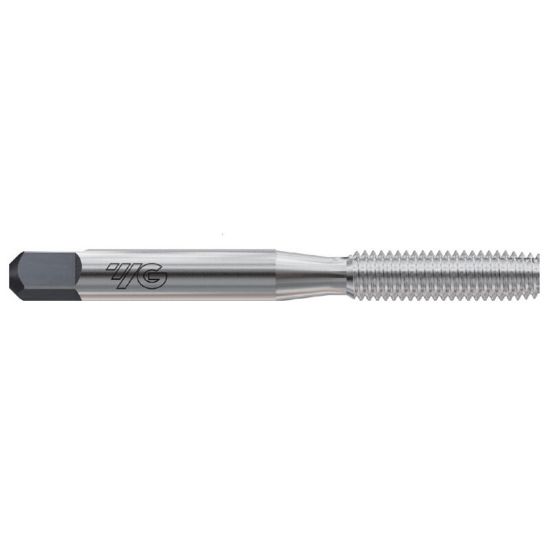

YG-1 T8R01404 1/4-20.00TPI Roll Form Plug 3.0P-4.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8R01404
Delivery date: 3-5 days
$10.81

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Roll Form Tapping, Through Hole Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Coating TiN
Dimensional Specifications
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Tool Material Steel
Dimension Standard ANSI/ANSI
Thread Pitch 20.00TPI
Thread Type NC/UNC
Tap Style Roll Form
Tap Chamfer 3.0P-4.0P
Thread Size 1/4"
Drill Range 0.2244 5.70MM - 0.2311 5.87MM
Tap Type Plug
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Length Type Standard
Thread Limit H4/GH4
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
