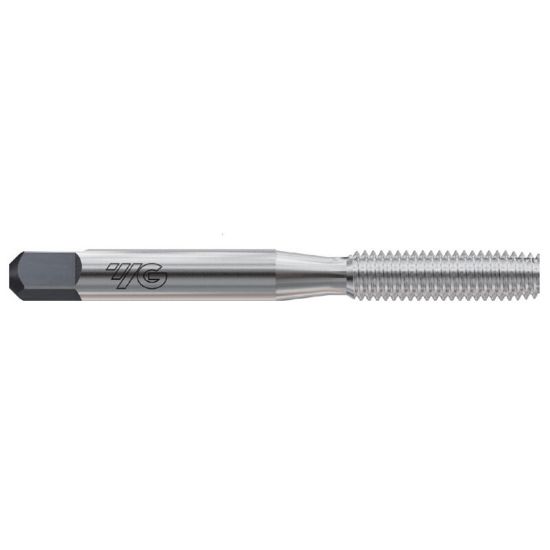

YG-1 T8R01283 No.8-32.00TPI Roll Form Plug 3.0P-4.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8R01283
Delivery date: 3-5 days
$11.12

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Roll Form Tapping, Tapping, Through Hole Tapping
Coating TiN
Made In USA No
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Tool Material Steel
Machine Side Connection Type Tap Collet
Length Type Standard
Thread Size No.8
Tap Type Plug
Thread Type NC/UNC
Thread Limit H3/GH3
Shank/Pilot Dia 0.1680 4.27MM
Drill Range 0.1480 3.76MM - 0.1520 3.86MM
Tap Square 0.1310
Tap Style Roll Form
Tap Chamfer 3.0P-4.0P
Overall Len 2.1250 53.98MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
