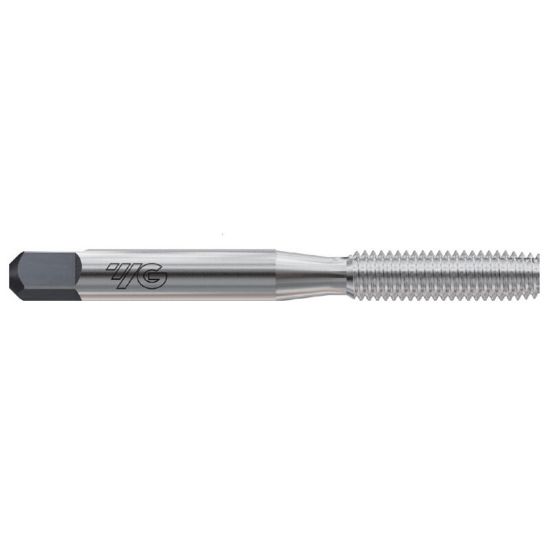

YG-1 T8R01243 No.6-32.00TPI Roll Form Plug 3.0P-4.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8R01243
Delivery date: 3-5 days
$11.12

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Plug Tapping, Roll Form Tapping, Tapping, Through Hole Tapping
Made In USA No
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Thread Pitch 32.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Length Type Standard
Tap Style Roll Form
Shank/Pilot Dia 0.1410 3.58MM
Drill Range 0.1138 2.89MM - 0.1260 3.20MM
Tap Type Plug
Dimension Standard ANSI/ANSI
Tool Material Steel
Overall Len 2.0000 50.80MM
Tap Square 0.1100
Thread Size No.6
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Tap Chamfer 3.0P-4.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
