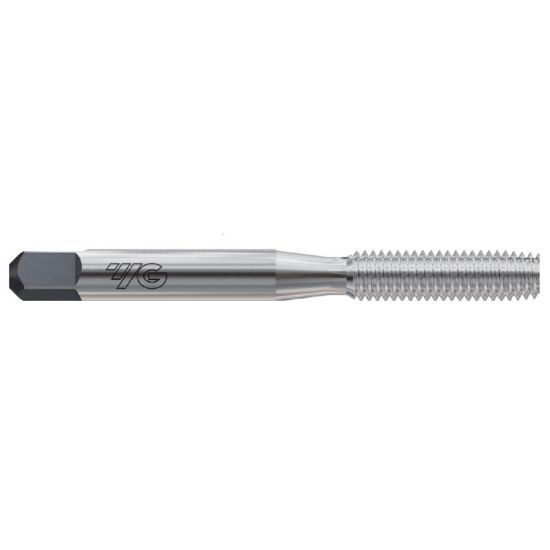

YG-1 T8R01163 No.4-40.00TPI Roll Form Plug 3.0P-4.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8R01163
Delivery date: 3-5 days
$11.12

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Roll Form Tapping, Through Hole Tapping, Plug Tapping, Tapping
Coating TiN
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Thread Type NC/UNC
Thread Limit H3/GH3
Flutes/Inserts 4
Drill Range 0.0992 2.52MM - 0.1024 2.60MM
Length Type Standard
Cut Rating <25HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Tool Material Steel
Tap Square 0.1100
Dimension Standard ANSI/ANSI
Overall Len 1.8750 47.63MM
Thread Size No.4
Shank/Pilot Dia 0.1410 3.58MM
Thread Pitch 40.00TPI
Tap Type Plug
Tap Style Roll Form
Tap Chamfer 3.0P-4.0P
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
