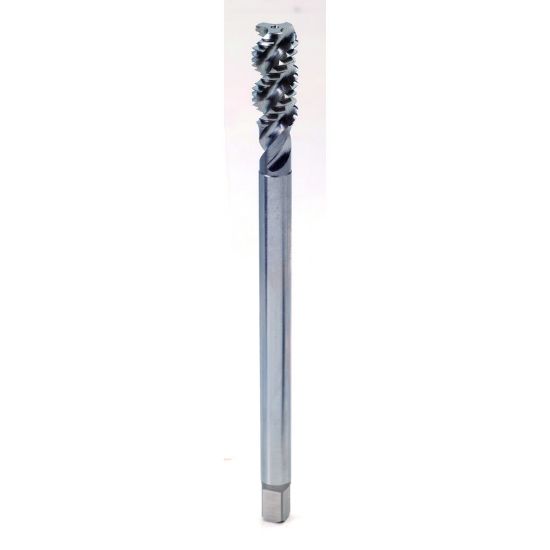

YG-1 T8D02523 7/16-14.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8D02523
Delivery date: 3-5 days
$57.43

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Coating TiN
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Size 7/16"
Thread Pitch 14.00TPI
Overall Len 6.0000 152.40MM
Tool Material Steel
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Tap Square 0.2420
Thread Type NC/UNC
Thread Limit H3/GH3
Dimension Standard ANSI/6"
Length Type Long
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
