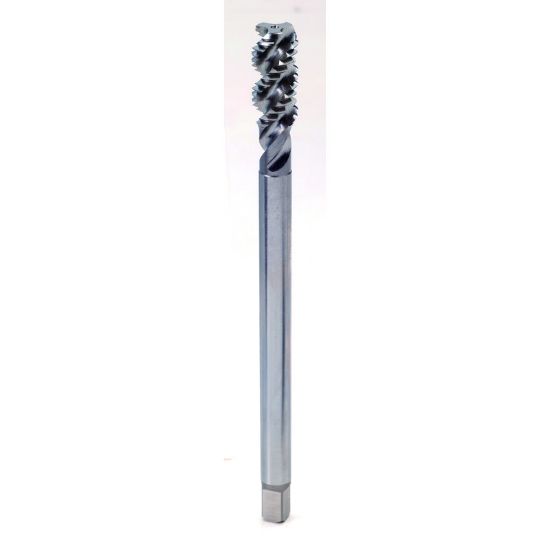

YG-1 T8D02323 No.10-24.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8D02323
Delivery date: 3-5 days
$38.24

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tap Square 0.1520
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Thread Size No.10
Thread Type NC/UNC
Dimension Standard ANSI/6"
Shank/Pilot Dia 0.1940 4.93MM
Length Type Long
Tool Material Steel
Thread Pitch 24.00TPI
Thread Limit H3/GH3
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Tap Type Bottoming
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
