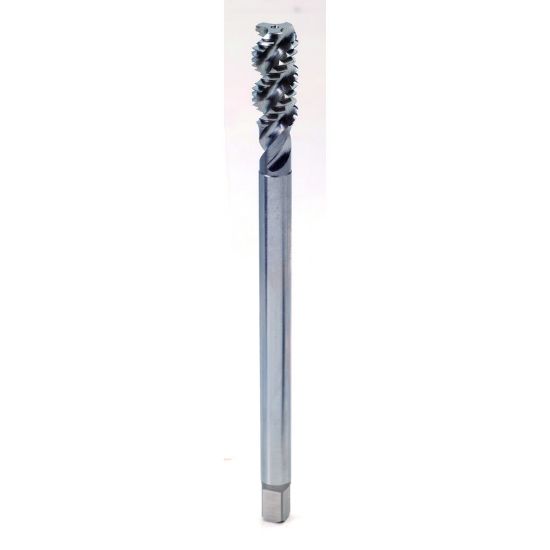

YG-1 T8D01403 1/4-20.00TPI Cut Spiral Flute Plug 4.0P-5.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8D01403
Delivery date: 3-5 days
$39.29

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Made In USA No
Shipping State Illinois
Package Size 1
Coating TiN
Performance Rating General Performance
Dimensional Specifications
Cut Rating <25HRC Steel, Stainless Steel
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Dimension Standard ANSI/6"
Length Type Long
Tool Material Steel
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 4.0P-5.0P
Thread Size 1/4"
Overall Len 6.0000 152.40MM
Tap Type Plug
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
