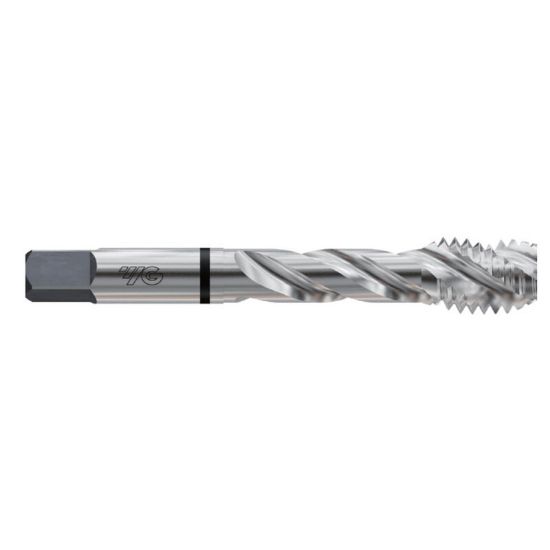

YG-1 T8657 M18-2.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8657
Delivery date: 3-5 days
$81.03

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Size M18
Thread Pitch 2.50MM
Drill Range 0.6063 15.40MM - 0.6319 16.05MM
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Flutes/Inserts 4
Thread Limit D7
Tool Material Steel
Overall Len 4.0310 102.39MM
Tap Square 0.3600
Shank/Pilot Dia 0.4800 12.19MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Type Metric
Dimension Standard ANSI/ANSI
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
