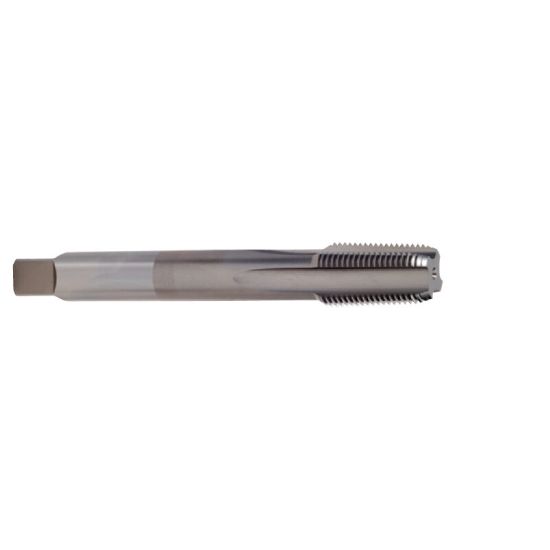

YG-1 T8546780 1-11.50TPI Pipe Extra Long Pipe 2.0P-3.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8546780
Delivery date: 3-5 days
$132.68

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Extra Long Pipe, Pipe Tapping, Tapping
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Made In USA No
Coating TiN
Dimensional Specifications
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Tap Square 0.8430
Thread Limit PIPE
Shank/Pilot Dia 1.1250 28.58MM - 1-1/8
Drill Range 1.1406 28.97MM
Tap Chamfer 2.0P-3.0P
Dimension Standard ANSI/ANSI
Thread Size 1"
Thread Pitch 11.50TPI
Length Type Long
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Overall Len 3.7500 95.25MM
Tap Type Pipe
Flutes/Inserts 5
Tap Style Pipe Extra Long
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
