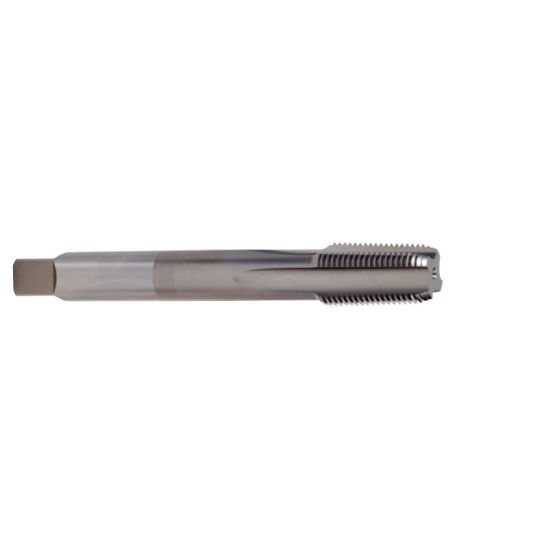

YG-1 T8546700 3/4-14.00TPI Pipe Extra Long Pipe 2.0P-3.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8546700
Delivery date: 3-5 days
$111.87

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Extra Long Pipe, Pipe Tapping
Performance Rating General Performance
Coating TiN
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Tap Type Pipe
Tool Material Steel
Tap Style Pipe Extra Long
Thread Pitch 14.00TPI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Overall Len 3.2500 82.55MM
Drill Range 0.9059 23.01MM
Tap Square 0.6790
Thread Type NPT/NPTF/ANPT
Flutes/Inserts 4
Length Type Long
Tap Chamfer 2.0P-3.0P
Thread Size 3/4"
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
