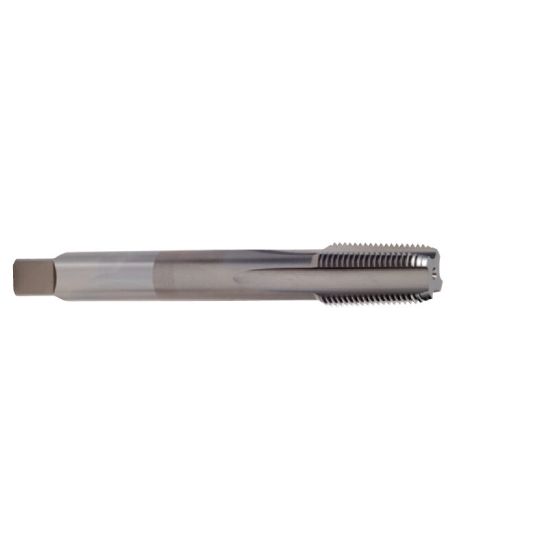

YG-1 T8546560 1/2-14.00TPI Pipe Extra Long Pipe 2.0P-3.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8546560
Delivery date: 3-5 days
$78.95

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Pipe Tapping, Tapping, Extra Long Pipe
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Tap Collet
Overall Len 3.1250 79.38MM
Drill Range 17.8500 453.39MM
Tap Type Pipe
Flutes/Inserts 4
Tap Square 0.5150
Length Type Long
Tap Chamfer 2.0P-3.0P
Dimension Standard ANSI/ANSI
Thread Type NPT/NPTF/ANPT
Shank/Pilot Dia 0.6875 17.46MM - 11/16
Thread Pitch 14.00TPI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Thread Size 1/2"
Tool Material Steel
Tap Style Pipe Extra Long
Thread Limit PIPE
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
