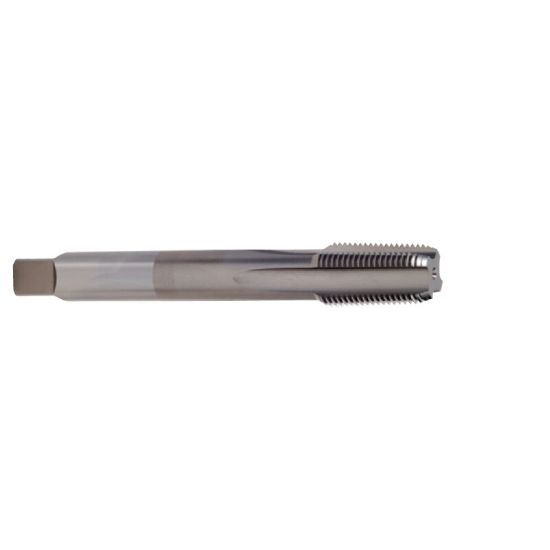

YG-1 T8546480 3/8-18.00TPI Pipe Extra Long Pipe 2.0P-3.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8546480
Delivery date: 3-5 days
$60.12

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Extra Long Pipe, Tapping
Coating TiN
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Size 3/8"
Flutes/Inserts 4
Length Type Long
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.7000 17.78MM
Tap Square 0.5310
Tap Type Pipe
Tap Style Pipe Extra Long
Overall Len 2.5620 65.07MM
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Thread Pitch 18.00TPI
Thread Limit PIPE
Drill Range 0.5622 14.28MM
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
