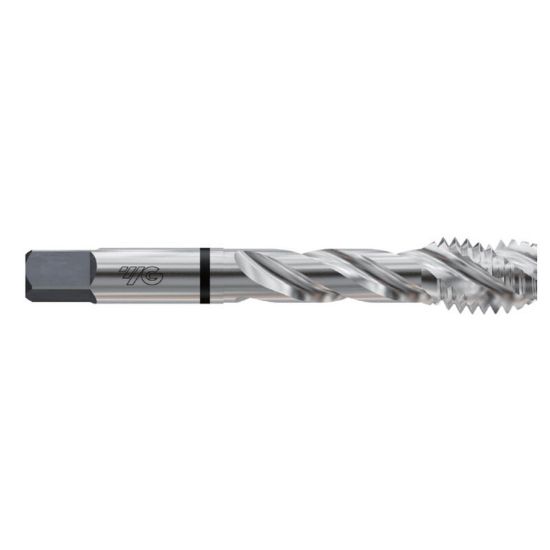

YG-1 T8365 M8-1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8365
Delivery date: 3-5 days
$17.69

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Pitch 1.25MM
Tool Material Steel
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Thread Type Metric
Dimension Standard ANSI/ANSI
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Flutes/Inserts 6
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Size M8
Tap Square 0.2380
Thread Limit D5
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Flute Direction R - Right
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 2.7200 69.09MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
