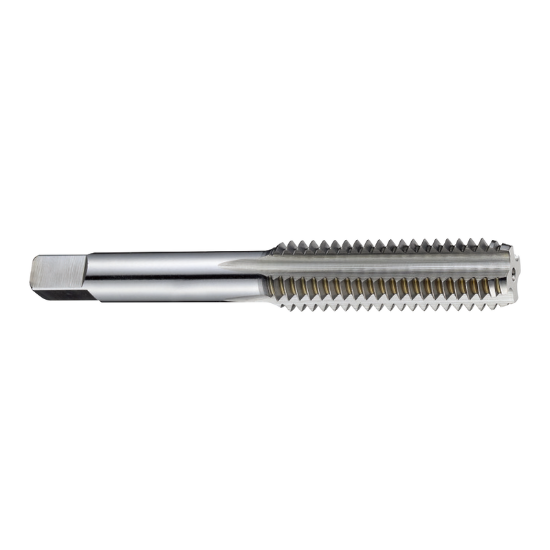

YG-1 T8316828 1-1/8-7.00TPI Hand Tap Bottoming 5.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8316828
Delivery date: 3-5 days
$107.72

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Application Blind Hole Tapping, Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Size 1-1/8"
Machine Side Connection Type Tap Collet
Drill Range 0.9764 24.80MM - 1.0134 25.74MM
Overall Len 5.4370 138.10MM
Tap Chamfer 5.0P
Thread Type NC/UNC
Flutes/Inserts 4
Length Type Standard
Tap Style Hand Tap
Thread Pitch 7.00TPI
Thread Limit H4/GH4
Tap Square 0.6720
Dimension Standard ANSI/ANSI
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Tap Type Bottoming
Shank/Pilot Dia 0.8960 22.76MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
