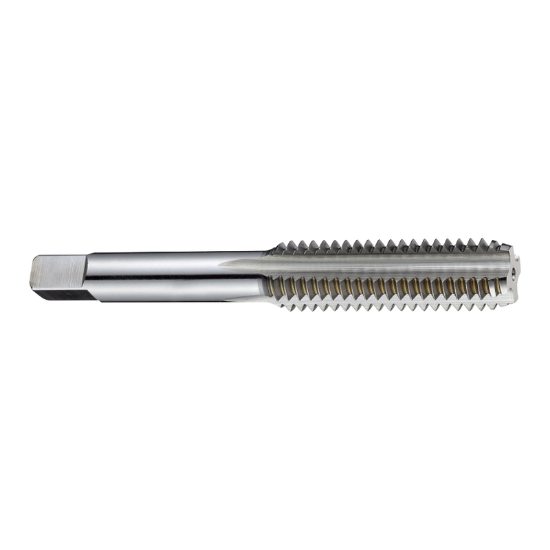

YG-1 T8316348 No.10-32.00TPI Hand Tap Bottoming 2.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8316348
Delivery date: 3-5 days
$6.36

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Blind Hole Tapping, Bottom Tapping, Tapping
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Coating TiN
Package Size 1
Dimensional Specifications
Overall Len 2.3750 60.33MM
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Length Type Standard
Tap Type Bottoming
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tap Chamfer 2.0P
Machine Side Connection Type Tap Collet
Thread Limit H3/GH3
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 4
Tap Style Hand Tap
Thread Size No.10
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Contractor Yes
Job Shop Yes
