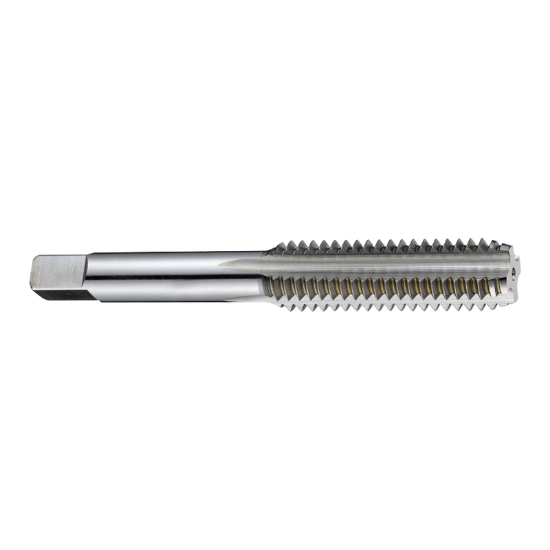

YG-1 T8316328 No.10-24.00TPI Hand Tap Bottoming 2.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8316328
Delivery date: 3-5 days
$6.36

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Application Blind Hole Tapping, Bottom Tapping, Cut Tapping, Tapping
Made In USA No
Performance Rating General Performance
Coating TiN
Dimensional Specifications
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Tap Square 0.1520
Tap Chamfer 2.0P
Thread Type NC/UNC
Thread Limit H3/GH3
Flutes/Inserts 4
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Standard
Tap Style Hand Tap
Tap Type Bottoming
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Overall Len 2.3750 60.33MM
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
