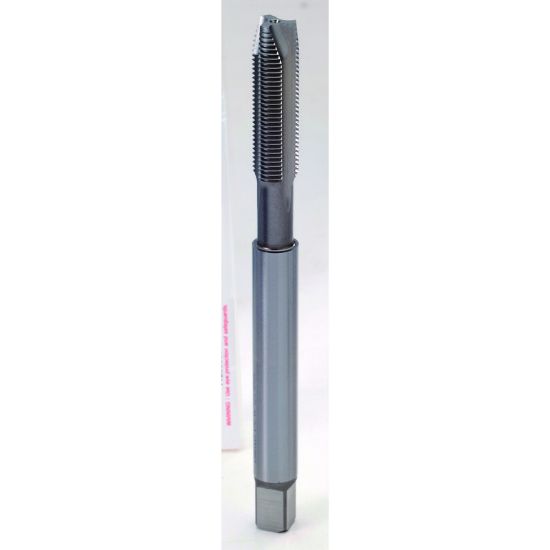

YG-1 T8236583 1/2-20.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8236583
Delivery date: 3-5 days
$51.11

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Plug Tapping, Tapping, Cut Tapping, Through Hole Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Tap Collet
Overall Len 6.0000 152.40MM
Tap Style Cut Spiral Point
Thread Type NF/UNF/UNEF
Thread Pitch 20.00TPI
Thread Limit H3/GH3
Dimension Standard ANSI/6"
Length Type Long
Shank/Pilot Dia 0.3670 9.32MM
Tap Type Plug
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Thread Size 1/2"
Tool Material Steel
Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Tap Square 0.2750
Tap Chamfer 4.0P-5.0P
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
