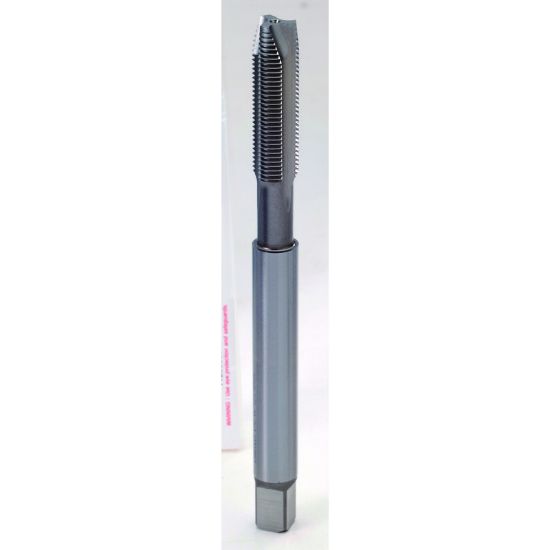

YG-1 T8236563 1/2-13.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8236563
Delivery date: 3-5 days
$51.11

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Thread Pitch 13.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Dimension Standard ANSI/6"
Length Type Long
Thread Size 1/2"
Cut Rating <25HRC Steel, Stainless Steel
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Style Cut Spiral Point
Flutes/Inserts 3
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 6.0000 152.40MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
