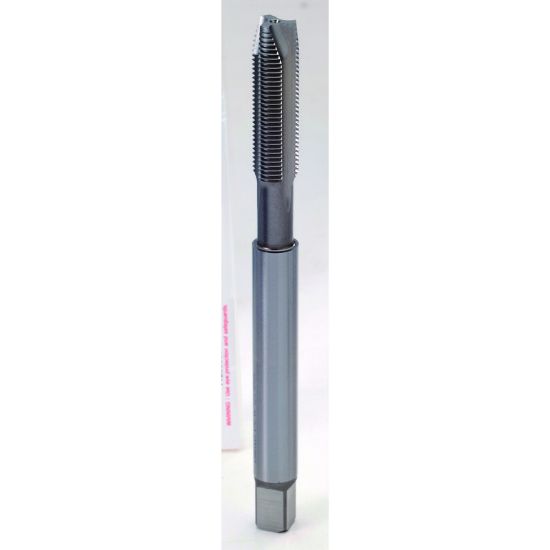

YG-1 T8236483 3/8-16.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8236483
Delivery date: 3-5 days
$41.07

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State Illinois
Package Size 1
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Tap Type Plug
Cut Rating <25HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tap Chamfer 4.0P-5.0P
Tool Material Steel
Thread Size 3/8"
Dimension Standard ANSI/6"
Tap Square 0.2860
Overall Len 6.0000 152.40MM
Thread Type NC/UNC
Thread Limit H3/GH3
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 2
Length Type Long
Thread Pitch 16.00TPI
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
