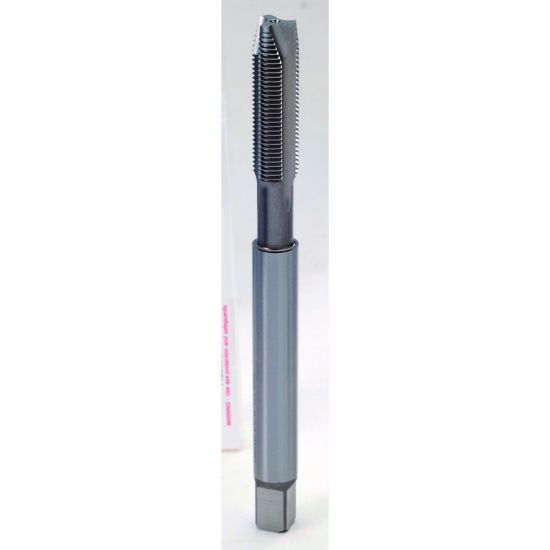

YG-1 T8236463 5/16-24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8236463
Delivery date: 3-5 days
$35.11

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Coating TiN
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Tap Square 0.2380
Tap Type Plug
Thread Size 5/16"
Overall Len 6.0000 152.40MM
Tap Style Cut Spiral Point
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Cut Rating <25HRC Steel, Stainless Steel
Thread Limit H3/GH3
Dimension Standard ANSI/6"
Flutes/Inserts 2
Length Type Long
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
