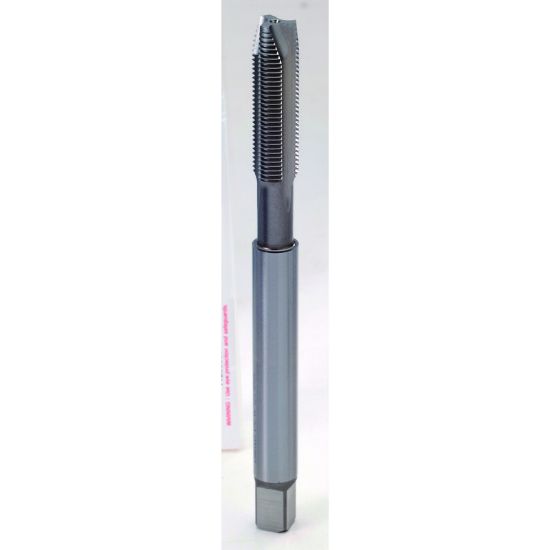

YG-1 T8236423 1/4-28.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8236423
Delivery date: 3-5 days
$30.53

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating General Performance
Shipping State Illinois
Coating TiN
Made In USA No
Package Size 1
Dimensional Specifications
Thread Type NF/UNF/UNEF
Shank/Pilot Dia 0.2550 6.48MM
Overall Len 6.0000 152.40MM
Tap Type Plug
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Limit H3/GH3
Dimension Standard ANSI/6"
Flutes/Inserts 2
Length Type Long
Thread Pitch 28.00TPI
Cut Rating <25HRC Steel, Stainless Steel
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Tap Square 0.1910
Tap Chamfer 4.0P-5.0P
Thread Size 1/4"
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
