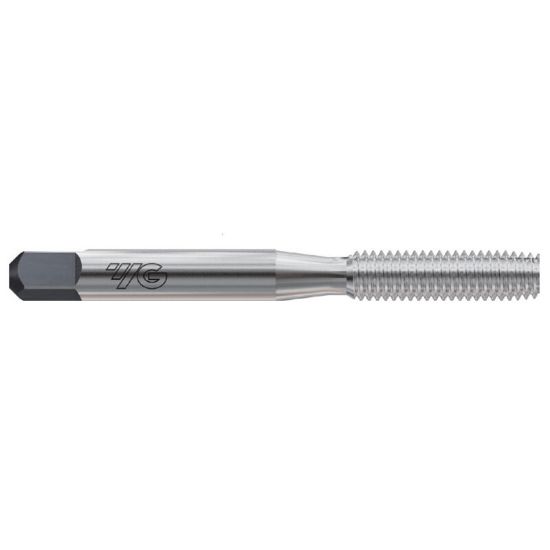

YG-1 T7R02485 3/8-16.00TPI Roll Form Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7R02485
Delivery date: 3-5 days
$12.32

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Roll Form Tapping, Bottom Tapping, Tapping
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Square 0.2860
Tap Chamfer 1.5P-2.0P
Thread Size 3/8"
Thread Type NC/UNC
Shank/Pilot Dia 0.3810 9.68MM
Tap Style Roll Form
Tool Material Steel
Thread Pitch 16.00TPI
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Overall Len 2.9370 74.60MM
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
