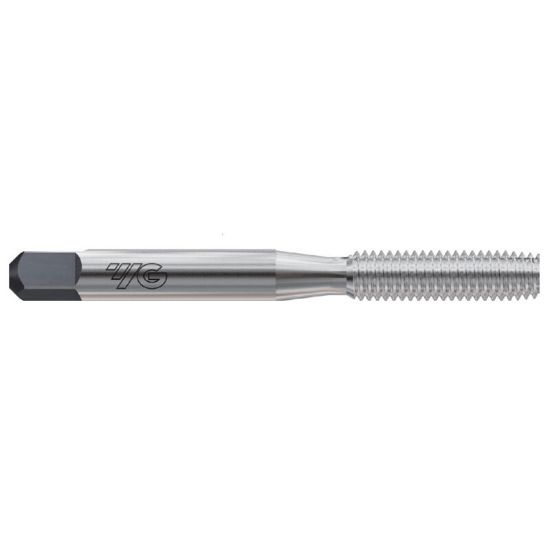

YG-1 T7R02404 1/4-20.00TPI Roll Form Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7R02404
Delivery date: 3-5 days
$9.67

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Application Bottom Tapping, Roll Form Tapping, Tapping, Blind Hole Tapping
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Type Bottoming
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Chamfer 1.5P-2.0P
Dimension Standard ANSI/ANSI
Thread Pitch 20.00TPI
Thread Type NC/UNC
Length Type Standard
Tap Style Roll Form
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Drill Range 0.2244 5.70MM - 0.2311 5.87MM
Thread Size 1/4"
Thread Limit H4/GH4
Shank/Pilot Dia 0.2550 6.48MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
