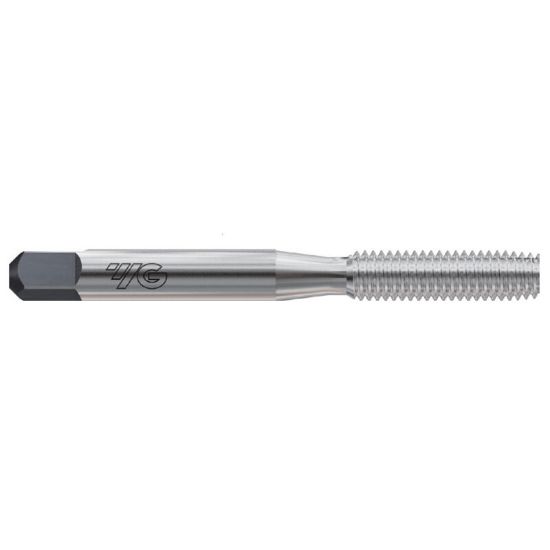

YG-1 T7R02324 No.10-24.00TPI Roll Form Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7R02324
Delivery date: 3-5 days
$9.09

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Bottom Tapping, Tapping, Roll Form Tapping, Blind Hole Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Limit H4/GH4
Thread Type NC/UNC
Shank/Pilot Dia 0.1940 4.93MM
Drill Range 0.1685 4.28MM - 0.1740 4.42MM
Tap Style Roll Form
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Length Type Standard
Tap Type Bottoming
Overall Len 2.3750 60.33MM
Tap Square 0.1520
Tool Material Steel
Thread Size No.10
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
