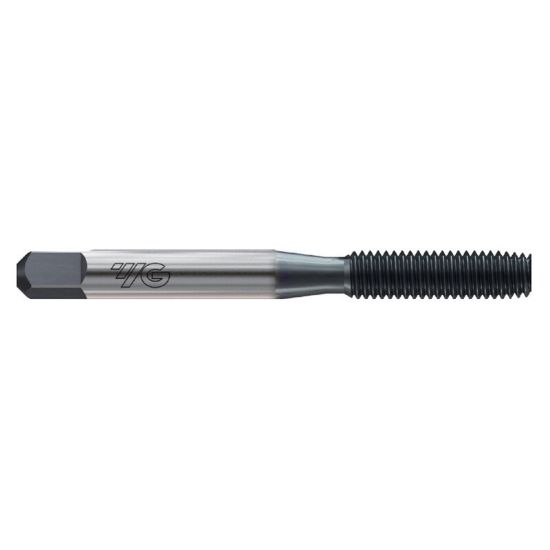

YG-1 T7R02283 No.8-32.00TPI Roll Form Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7R02283
Delivery date: 3-5 days
$10.07

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Blind Hole Tapping, Roll Form Tapping, Bottom Tapping, Tapping
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Thread Type NC/UNC
Thread Limit H3/GH3
Drill Range 0.1480 3.76MM - 0.1520 3.86MM
Tap Square 0.1310
Tap Style Roll Form
Machine Side Connection Type Tap Collet
Tool Material Steel
Thread Size No.8
Overall Len 2.1250 53.98MM
Shank/Pilot Dia 0.1680 4.27MM
Length Type Standard
Tap Type Bottoming
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
