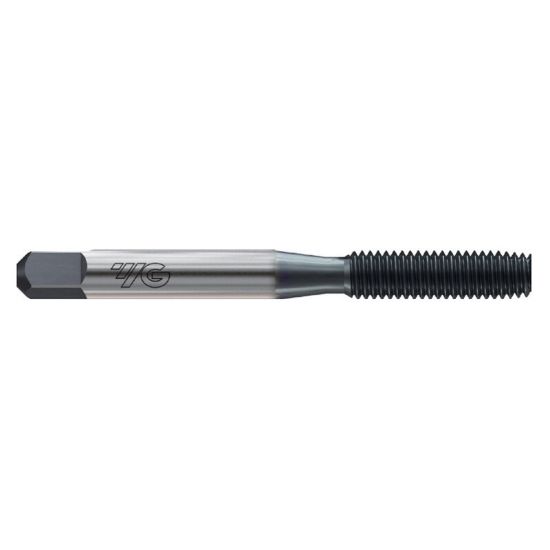

YG-1 T7R02163 No.4-40.00TPI Roll Form Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7R02163
Delivery date: 3-5 days
$10.07

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Roll Form Tapping, Bottom Tapping, Tapping
Package Size 1
Shipping State Illinois
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Thread Pitch 40.00TPI
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Thread Size No.4
Shank/Pilot Dia 0.1410 3.58MM
Tap Chamfer 1.5P-2.0P
Tool Material Steel
Tap Square 0.1100
Thread Type NC/UNC
Thread Limit H3/GH3
Drill Range 0.0992 2.52MM - 0.1024 2.60MM
Length Type Standard
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Overall Len 1.8750 47.63MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
