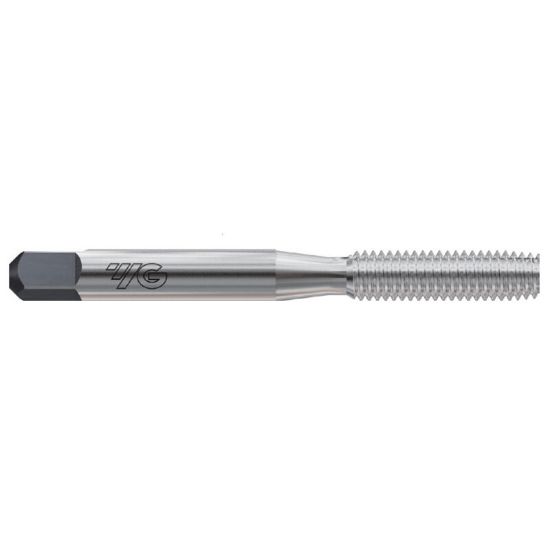

YG-1 T7R01485 3/8-16.00TPI Roll Form Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7R01485
Delivery date: 3-5 days
$12.32

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Roll Form Tapping, Through Hole Tapping, Plug Tapping, Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Overall Len 2.9370 74.60MM
Length Type Standard
Cut Rating <40HRC Steel
Tap Square 0.2860
Tap Chamfer 4.0P-5.0P
Machine Side Connection Type Tap Collet
Thread Pitch 16.00TPI
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Tool Material Steel
Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Tap Type Plug
Thread Size 3/8"
Thread Type NC/UNC
Shank/Pilot Dia 0.3810 9.68MM
Tap Style Roll Form
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
