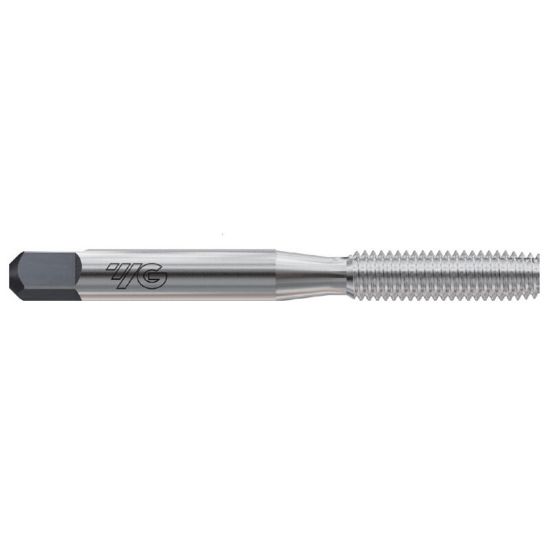

YG-1 T7R01445 5/16-18.00TPI Roll Form Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7R01445
Delivery date: 3-5 days
$10.87

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Size 5/16"
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 2.7200 69.09MM
Drill Range 0.2839 7.21MM - 0.2913 7.40MM
Tap Square 0.2380
Tap Type Plug
Thread Type NC/UNC
Length Type Standard
Tap Style Roll Form
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Thread Pitch 18.00TPI
Tap Chamfer 4.0P-5.0P
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
