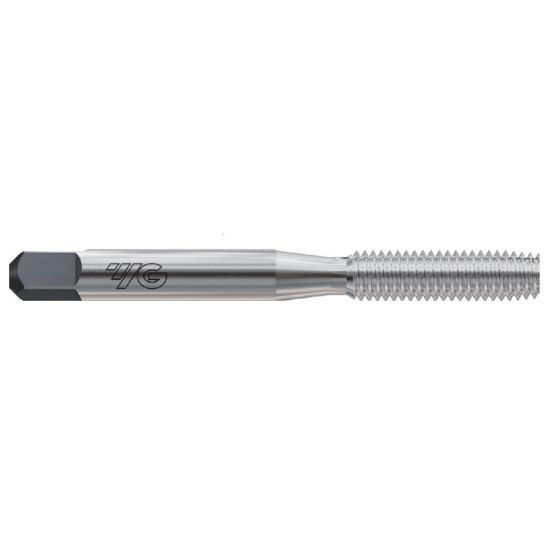

YG-1 T7R01424 1/4-28.00TPI Roll Form Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7R01424
Delivery date: 3-5 days
$9.67

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Roll Form Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Limit H4/GH4
Shank/Pilot Dia 0.2550 6.48MM
Tap Square 0.1910
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Drill Range 0.2315 5.88MM - 0.2362 6.00MM
Tap Chamfer 4.0P-5.0P
Length Type Standard
Tap Style Roll Form
Thread Pitch 28.00TPI
Tool Material Steel
Thread Size 1/4"
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
