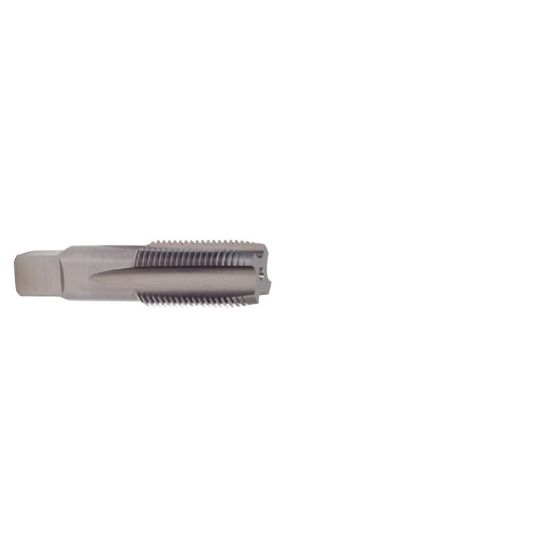

YG-1 T7L36700 3/4-14.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7L36700
Delivery date: 3-5 days
$78.83

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Straight Flute Pipe
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Pitch 14.00TPI
Flute Direction STRAIGHT
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Thread Size 3/4"
Tap Style Pipe Straight Flute
Thread Limit PIPE
Overall Len 3.2500 82.55MM
Tap Square 0.6790
Tap Chamfer 2.0P-3.0P
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Thread Type NPSM/NPSF
Tool Material Steel
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Type Tap Collet
Drill Range 0.9059 23.01MM
Tap Type Pipe
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
