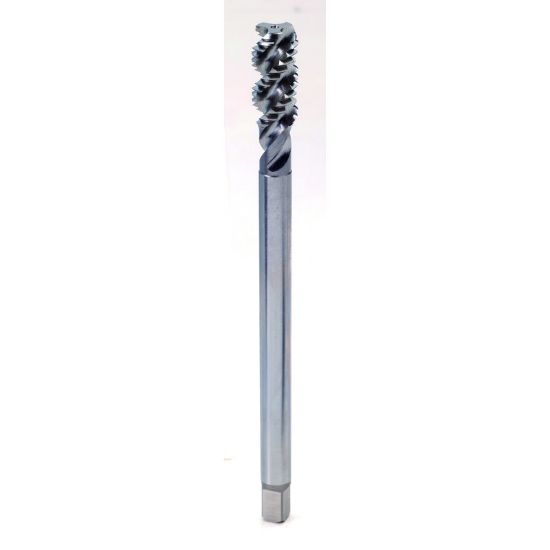

YG-1 T7D02403 1/4-20.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7D02403
Delivery date: 3-5 days
$30.05

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Shank/Pilot Dia 0.2550 6.48MM
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Tap Collet
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Tap Type Bottoming
Length Type Long
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Dimension Standard ANSI/6"
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Size 1/4"
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
