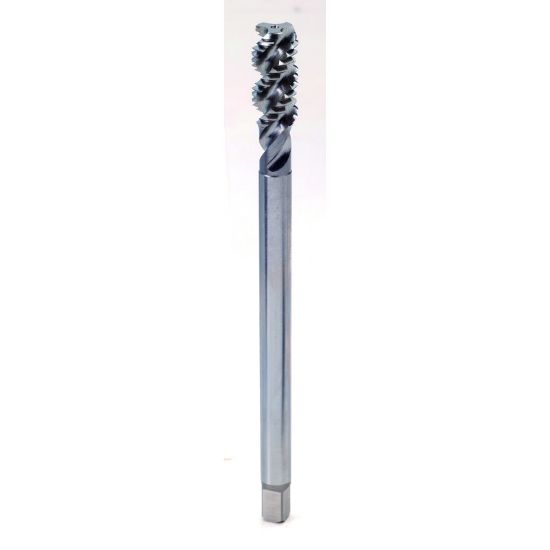

YG-1 T7D01643 5/8-11.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7D01643
Delivery date: 3-5 days
$73.15

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Made In USA No
Performance Rating General Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Cut Rating <25HRC Steel, Stainless Steel
Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Thread Type NC/UNC
Thread Limit H3/GH3
Dimension Standard ANSI/6"
Length Type Long
Flutes/Inserts 3
Thread Size 5/8"
Overall Len 6.0000 152.40MM
Tap Type Plug
Thread Pitch 11.00TPI
Shank/Pilot Dia 0.4800 12.19MM
Tap Chamfer 4.0P-5.0P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
