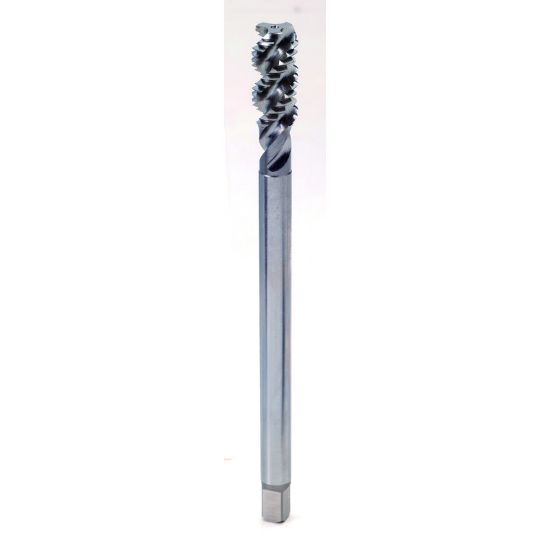

YG-1 T7D01563 1/2-13.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7D01563
Delivery date: 3-5 days
$52.23

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.3670 9.32MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Style Cut Spiral Point
Tap Chamfer 4.0P-5.0P
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Thread Pitch 13.00TPI
Dimension Standard ANSI/6"
Thread Size 1/2"
Tool Material Steel
Thread Type NC/UNC
Thread Limit H3/GH3
Length Type Long
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
