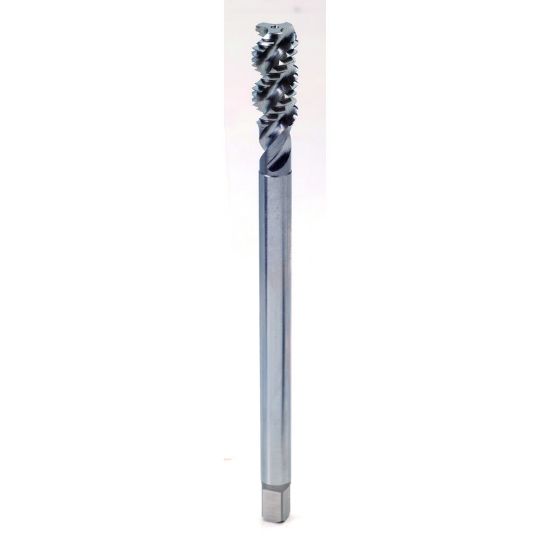

YG-1 T7D01483 3/8-16.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7D01483
Delivery date: 3-5 days
$41.47

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Tap Square 0.2860
Tap Chamfer 4.0P-5.0P
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Thread Size 3/8"
Thread Type NC/UNC
Thread Limit H3/GH3
Dimension Standard ANSI/6"
Shank/Pilot Dia 0.3810 9.68MM
Length Type Long
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Pitch 16.00TPI
Overall Len 6.0000 152.40MM
Tap Type Plug
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
