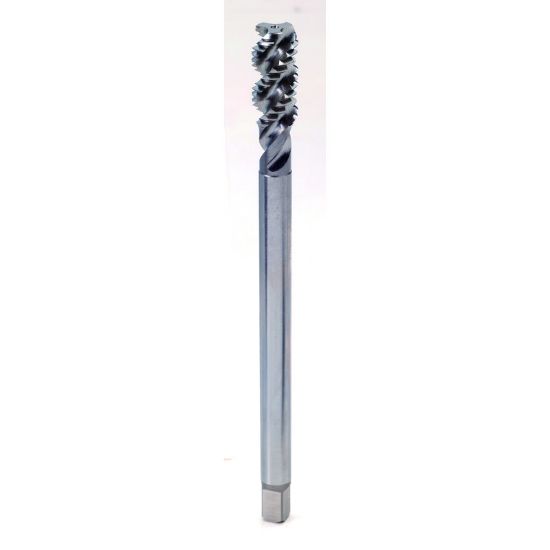

YG-1 T7D01283 No.8-32.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7D01283
Delivery date: 3-5 days
$29.09

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Style Cut Spiral Point
Tap Chamfer 4.0P-5.0P
Thread Type NC/UNC
Thread Limit H3/GH3
Dimension Standard ANSI/6"
Shank/Pilot Dia 0.1680 4.27MM
Tap Square 0.1310
Length Type Long
Thread Pitch 32.00TPI
Tap Type Plug
Tool Material Steel
Thread Size No.8
Overall Len 6.0000 152.40MM
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
