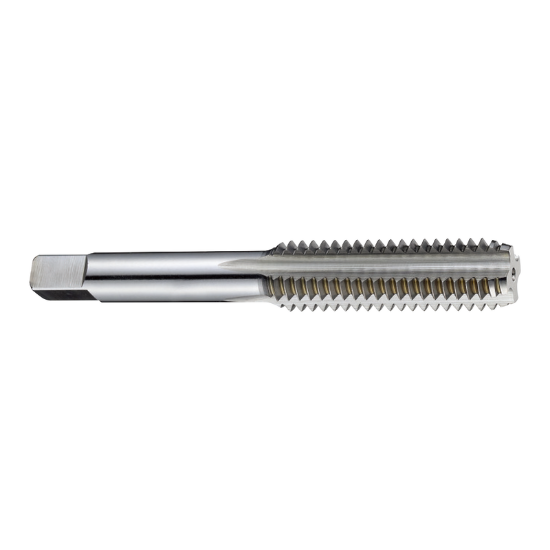

YG-1 T7B15288 M5-0.80MM Over Sized Bottom Bottoming 2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7B15288
Delivery date: 3-5 days
$6.31

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, Blind Hole Tapping, Over Sized Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Pitch 0.80MM
Thread Size M5
Thread Limit GH11 +0.005"
Dimension Standard ANSI/ANSI
Tap Style Over Sized Bottom
Shank/Pilot Dia 0.1940 4.93MM
Overall Len 2.3750 60.33MM
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Flutes/Inserts 4
Length Type Standard
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Thread Type Metric
Tap Square 0.1520
Tap Chamfer 2.0P
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
