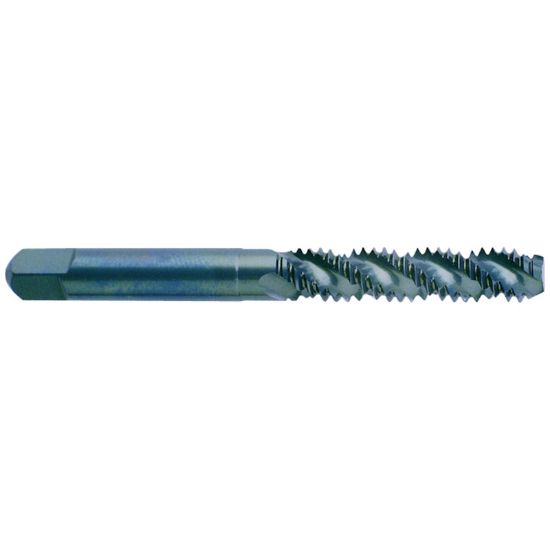

YG-1 T7A85315 M6-1.00MM Cut Spiral Flute Bottoming 1.5P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7A85315
Delivery date: 3-5 days
$9.96

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Made In USA No
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Dimensional Specifications
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Shank/Pilot Dia 0.2550 6.48MM
Tool Material Steel
Tap Type Bottoming
Thread Type Metric
Dimension Standard ANSI/ANSI
Thread Size M6
Cut Rating <25HRC Steel, Stainless Steel
Length Type Standard
Flutes/Inserts 3
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
