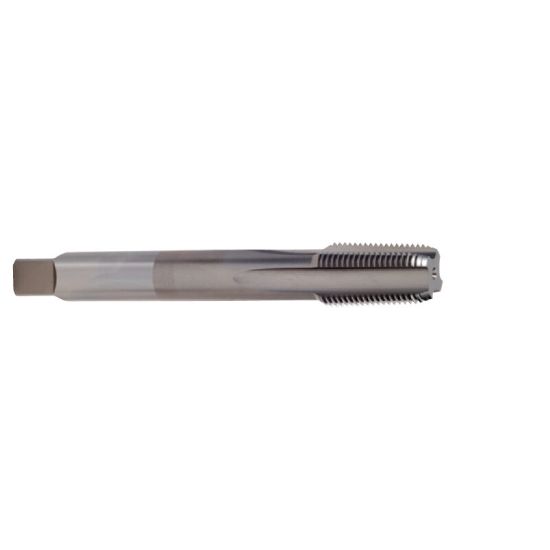

YG-1 T7546700 3/4-14.00TPI Pipe Extra Long Pipe 2.0P-3.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7546700
Delivery date: 3-5 days
$99.56

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Tapping, Pipe Tapping, Extra Long Pipe
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Thread Type NPT/NPTF/ANPT
Thread Size 3/4"
Thread Limit PIPE
Tap Square 0.6790
Tap Chamfer 2.0P-3.0P
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Machine Side Connection Type Tap Collet
Drill Range 0.9059 23.01MM
Tap Type Pipe
Dimension Standard ANSI/6"
Flutes/Inserts 4
Length Type Long
Thread Pitch 14.00TPI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Overall Len 6.0000 152.40MM
Tool Material Steel
Tap Style Pipe Extra Long
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
