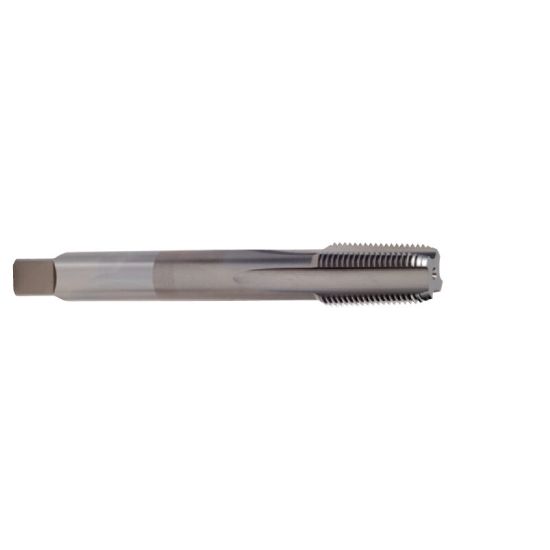

YG-1 T7546560 1/2-14.00TPI Pipe Extra Long Pipe 2.0P-3.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7546560
Delivery date: 3-5 days
$70.75

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Extra Long Pipe, Pipe Tapping
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Thread Pitch 14.00TPI
Overall Len 6.0000 152.40MM
Tap Type Pipe
Dimension Standard ANSI/6"
Shank/Pilot Dia 0.6875 17.46MM - 11/16
Flutes/Inserts 4
Tap Square 0.5150
Length Type Long
Machine Side Connection Type Tap Collet
Drill Range 17.8500 453.39MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Thread Limit PIPE
Tap Chamfer 2.0P-3.0P
Thread Size 1/2"
Tap Style Pipe Extra Long
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
