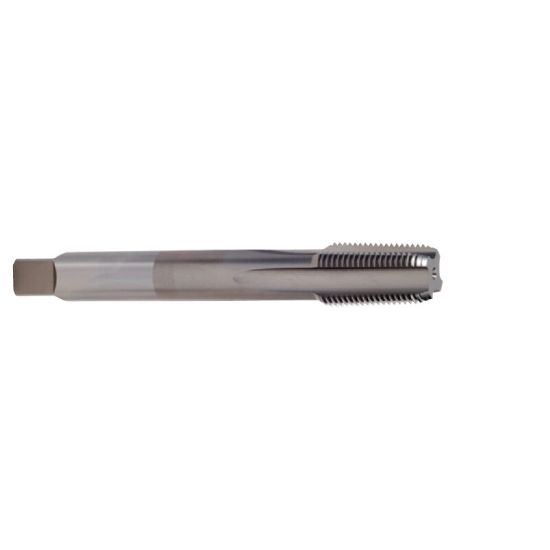

YG-1 T7546200 1/8-27.00TPI Pipe Extra Long Pipe 2.0P-3.0P HSS-EX Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7546200
Delivery date: 3-5 days
$42.29

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Extra Long Pipe, Tapping, Pipe Tapping
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Tool Material Steel
Tap Square 0.2340
Tap Style Pipe Extra Long
Dimension Standard ANSI/6"
Shank/Pilot Dia 0.3120 7.92MM
Length Type Long
Thread Pitch 27.00TPI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Overall Len 6.0000 152.40MM
Thread Limit PIPE
Tap Chamfer 2.0P-3.0P
Thread Type NPT/NPTF/ANPT
Drill Range 0.3319 8.43MM
Thread Size 1/8"
Machine Side Connection Type Tap Collet
Tap Type Pipe
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-EX
Industry-Specific Applications
Job Shop Yes
